Instructions

• Step 1:Make connections as per the instructions given below:

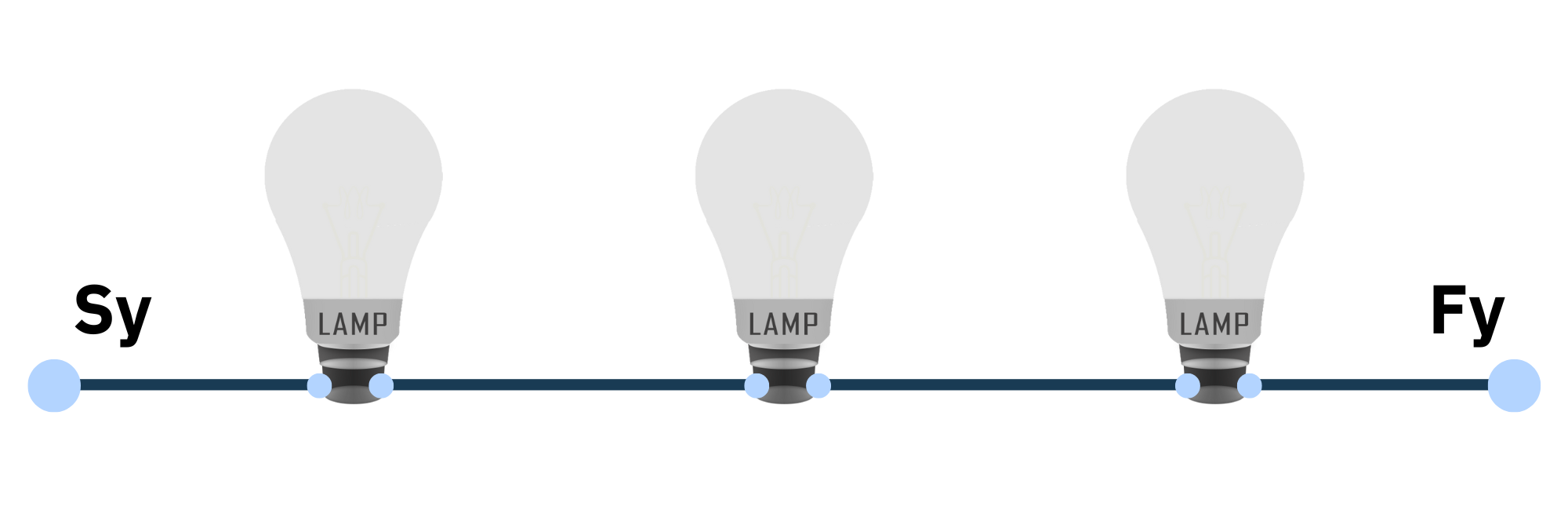

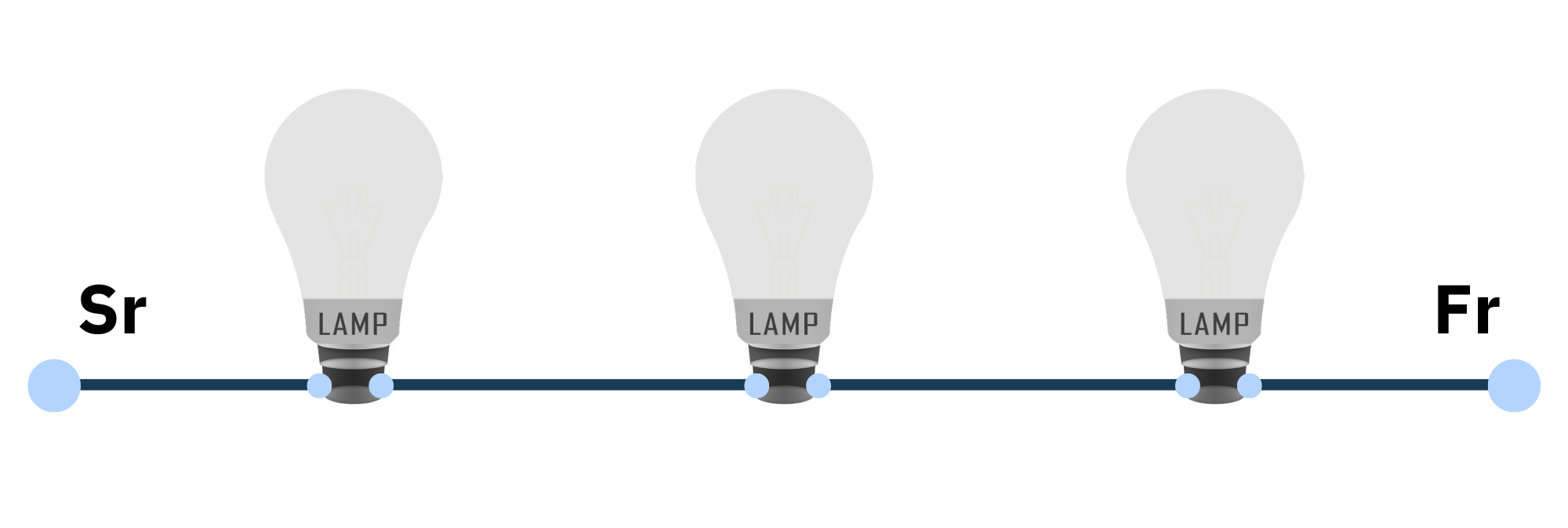

• For Star Load:


• i.(3-14), (3-15)
• ii.(2-4), (2-8), (2-12)
• iii.(1-5), (1-6)
• iv.(7-10), (7-11)
• v.(9-16), (12-18), (13-20)
• vi.(17-19), (19-21)


• Note: Click on the label to delete the connection for the corresponding node.


• Step 2: (a) Now, Check the connections by clicking on ‘CHECK’ button.


• (b) If the connections are ‘Invalid connections’ click on corresponding labels to remove the connection.


• (c) And if the connections are ‘Right Connections’ then follow the below steps.


• Step 3: Turn on the MCB.


• Step 4: Now, Click on ‘ADD’ button to add the readings in the observation table.


• For Delta Load:


• i.(3-14), (3-15)
• ii.(2-4), (2-8), (2-12)
• iii.(1-5), (1-6)
• iv.(7-10), (7-11)
• v.(9-16), (12-18), (13-20)
• vi.(16-19), (18-21) (17-20)


• Step 5:Repeat the process from step 2 to step 4.


• Step 6:Click on ‘PRINT’ button to takeout the print of the webpage.


STEP 7:Click on ‘RESET’ button to reload the webpage.
